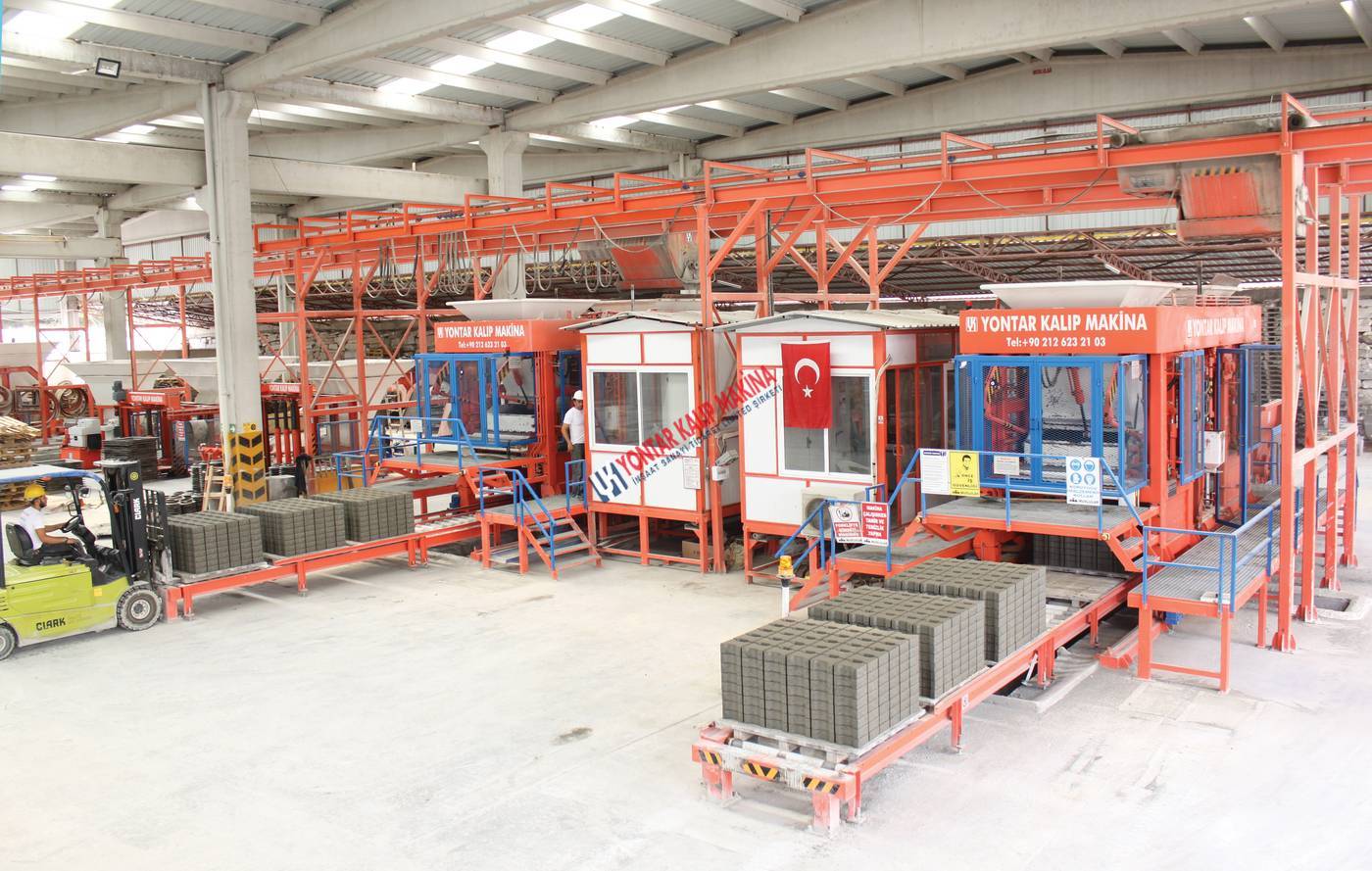

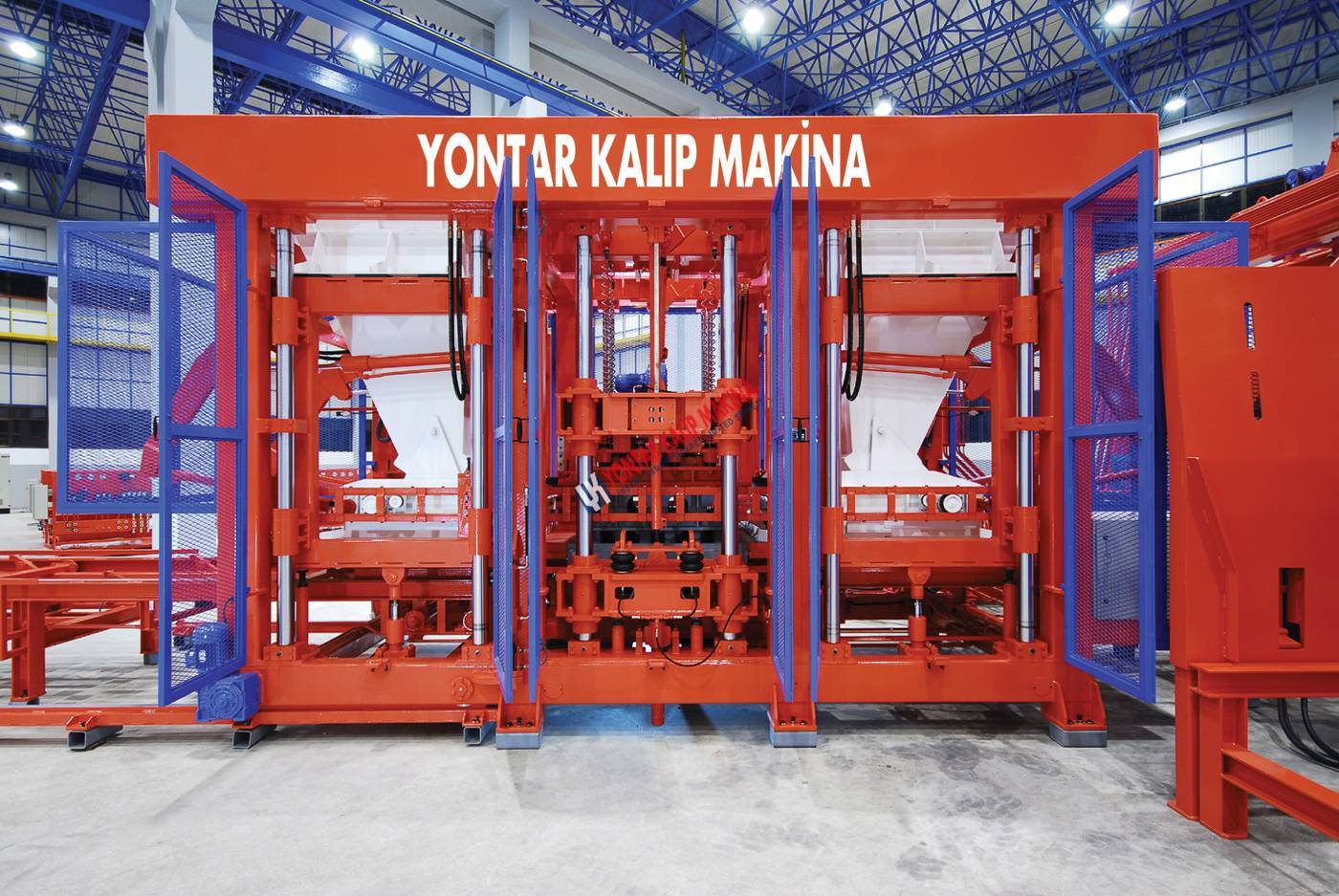

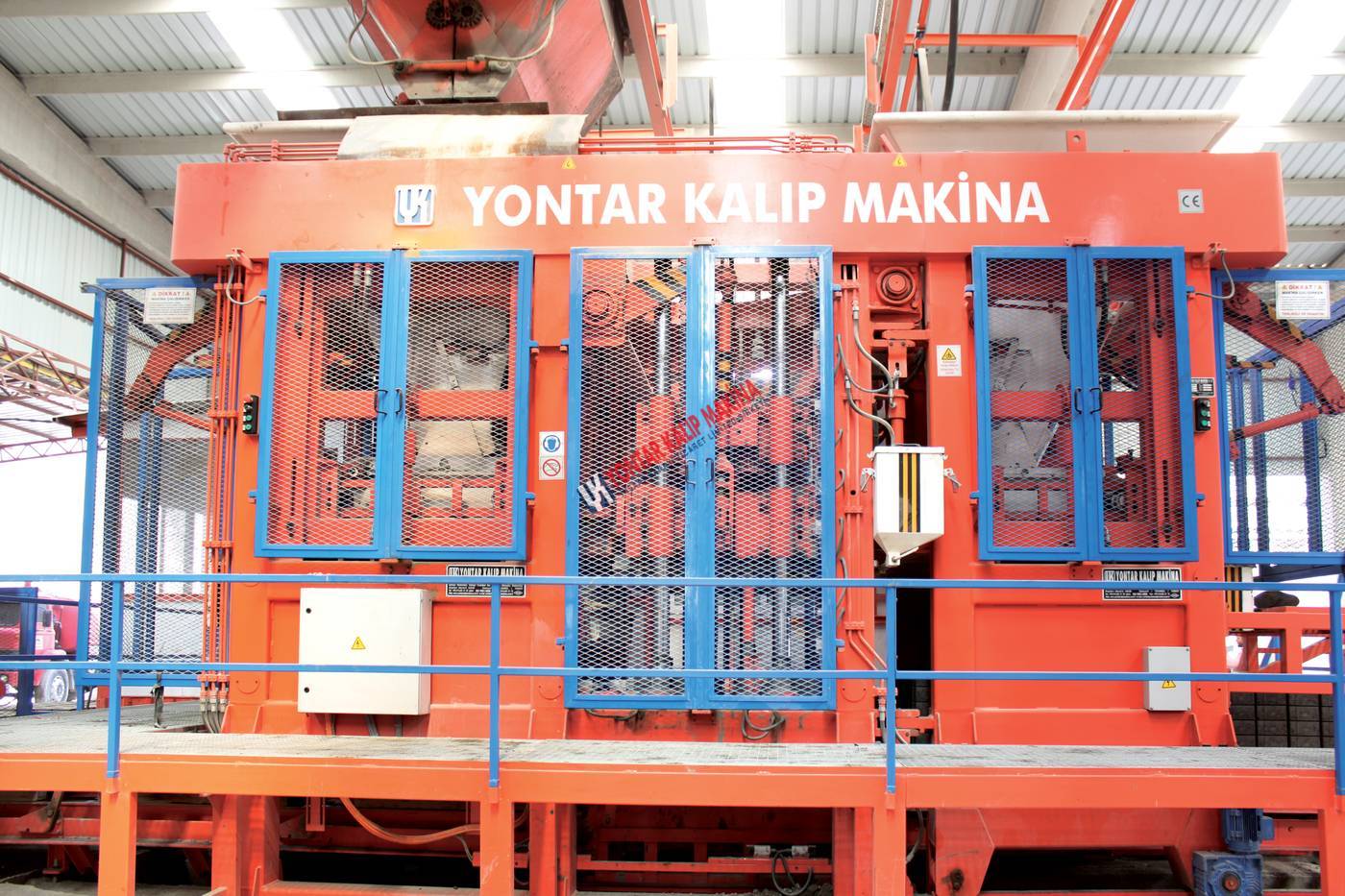

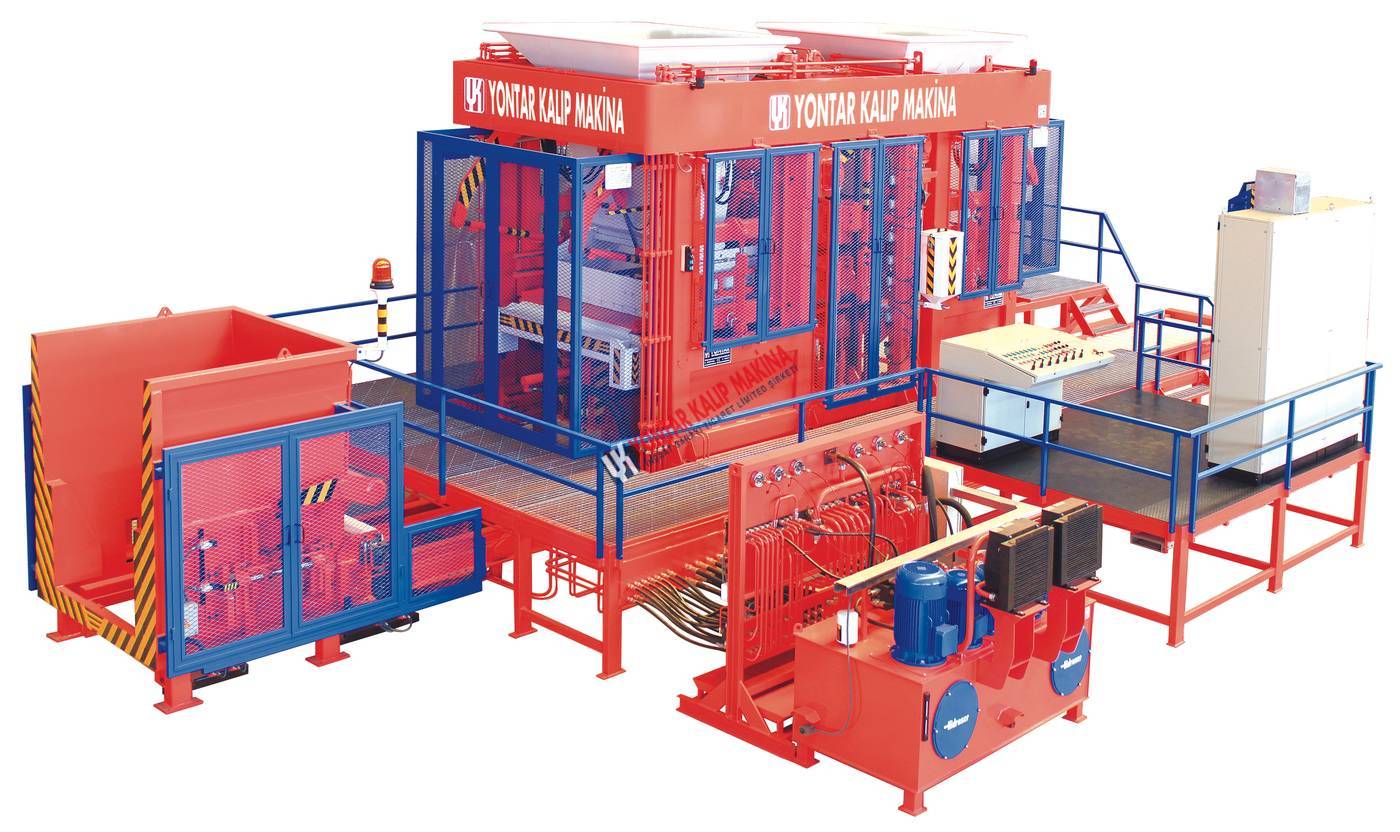

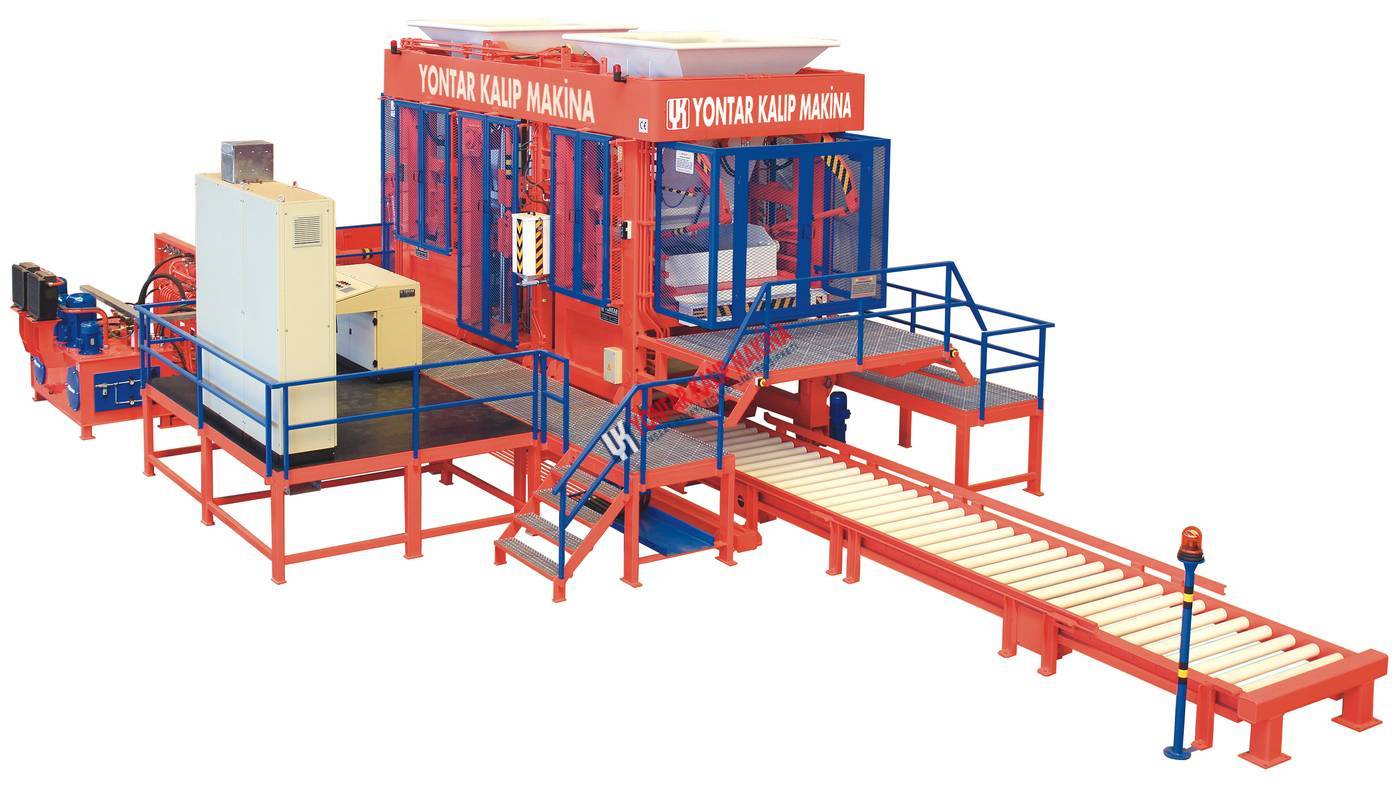

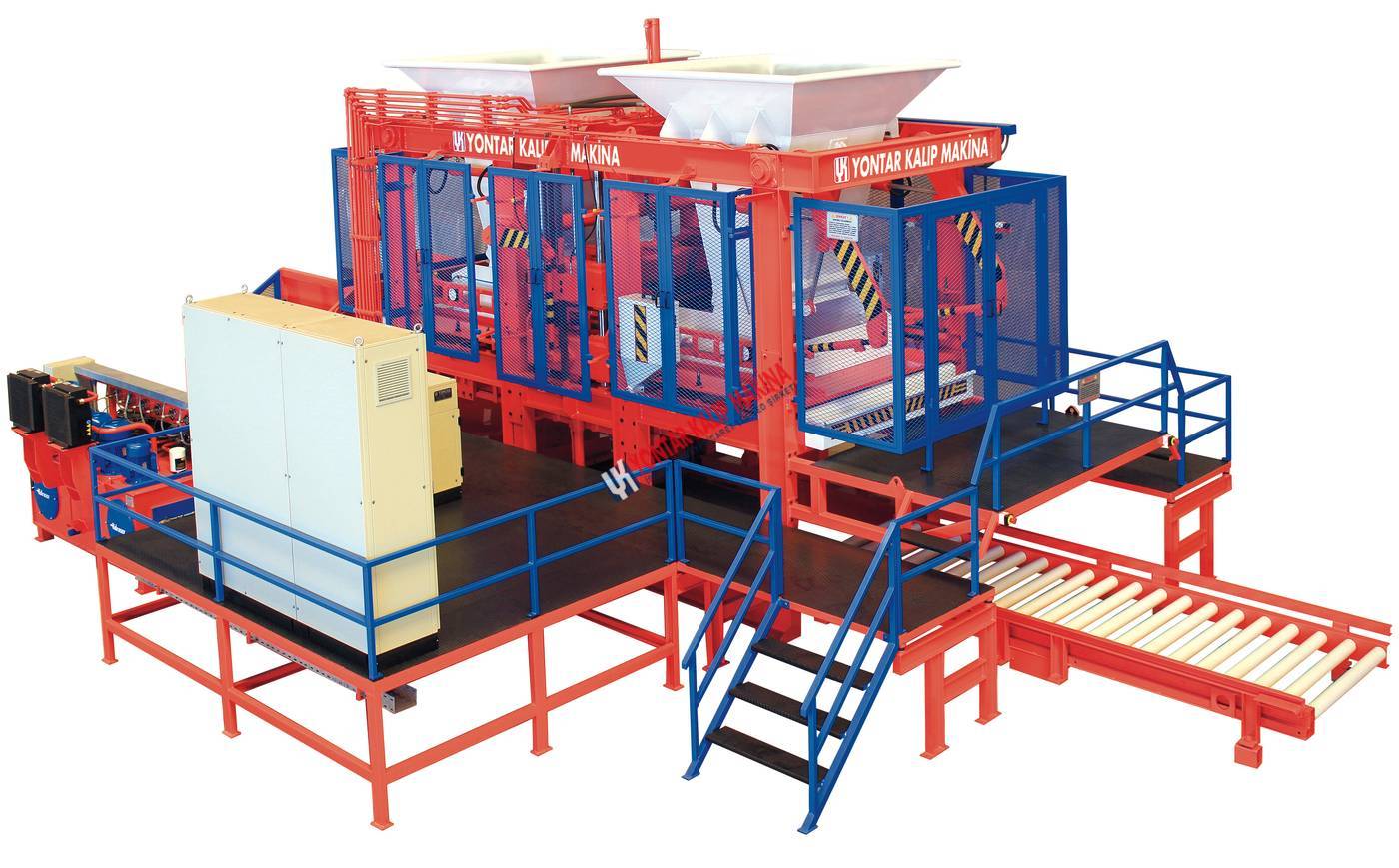

KPM 1036 is a full autmatic multi-layer concrete blockmaking machine. It produces every sort of concrete pavingstone, grass stones, kerbstones, rain gutter stones, briquettes etc.
System operation is programmed via a PLC microprocessor computer.

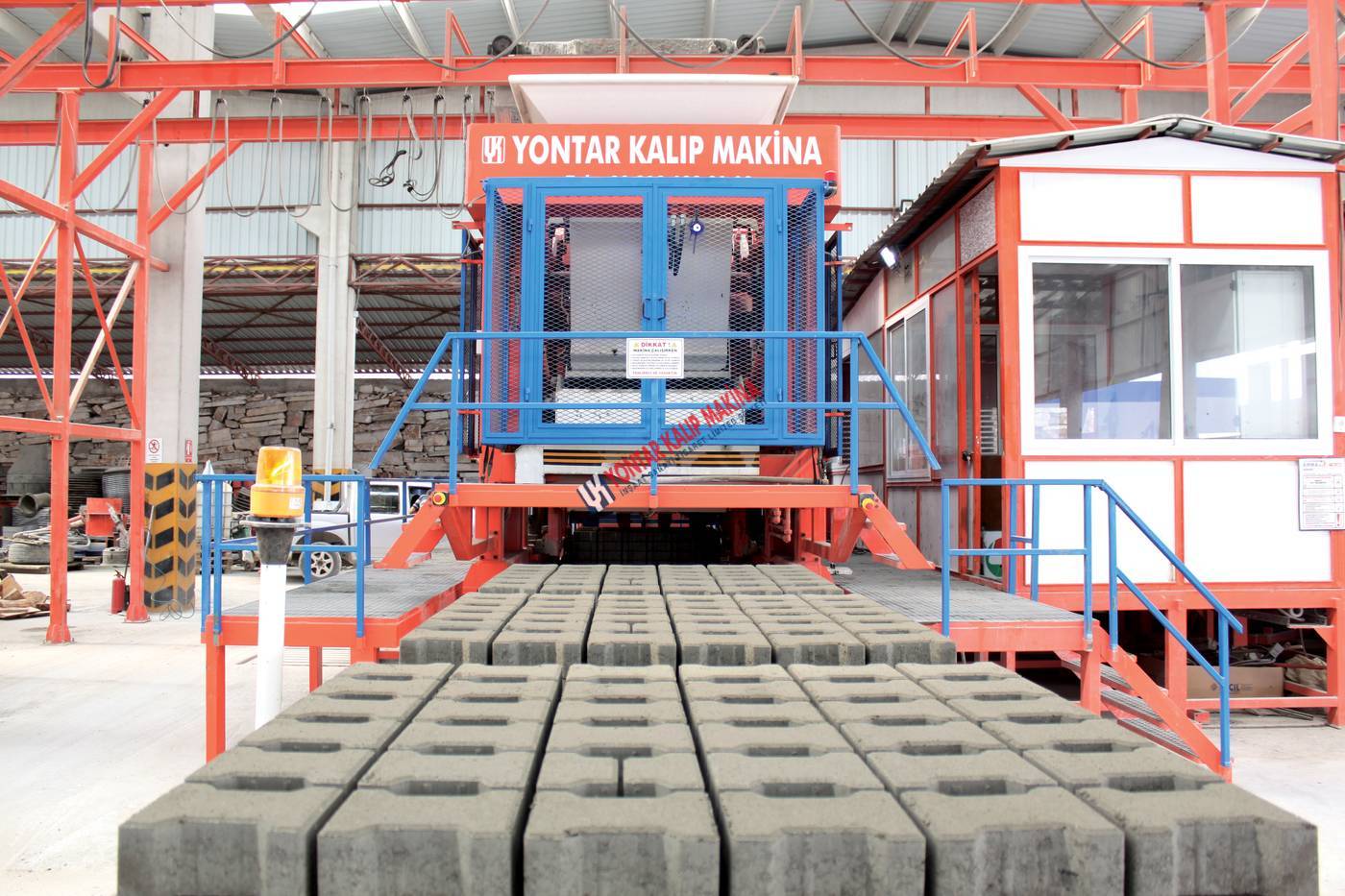

Produces blocks and puts them on wooden pallet. 8cm stones are put into 8 rows, 6cm stones are put into 10 rows.
Mould effective area allows producing 1 m2 of blocks per one stamp time.
Thin mortar station is designed to be movable by means of motor.
Vibrator motors are equipped with brake electronic system.
Machines trays are moved by hydraulic system.

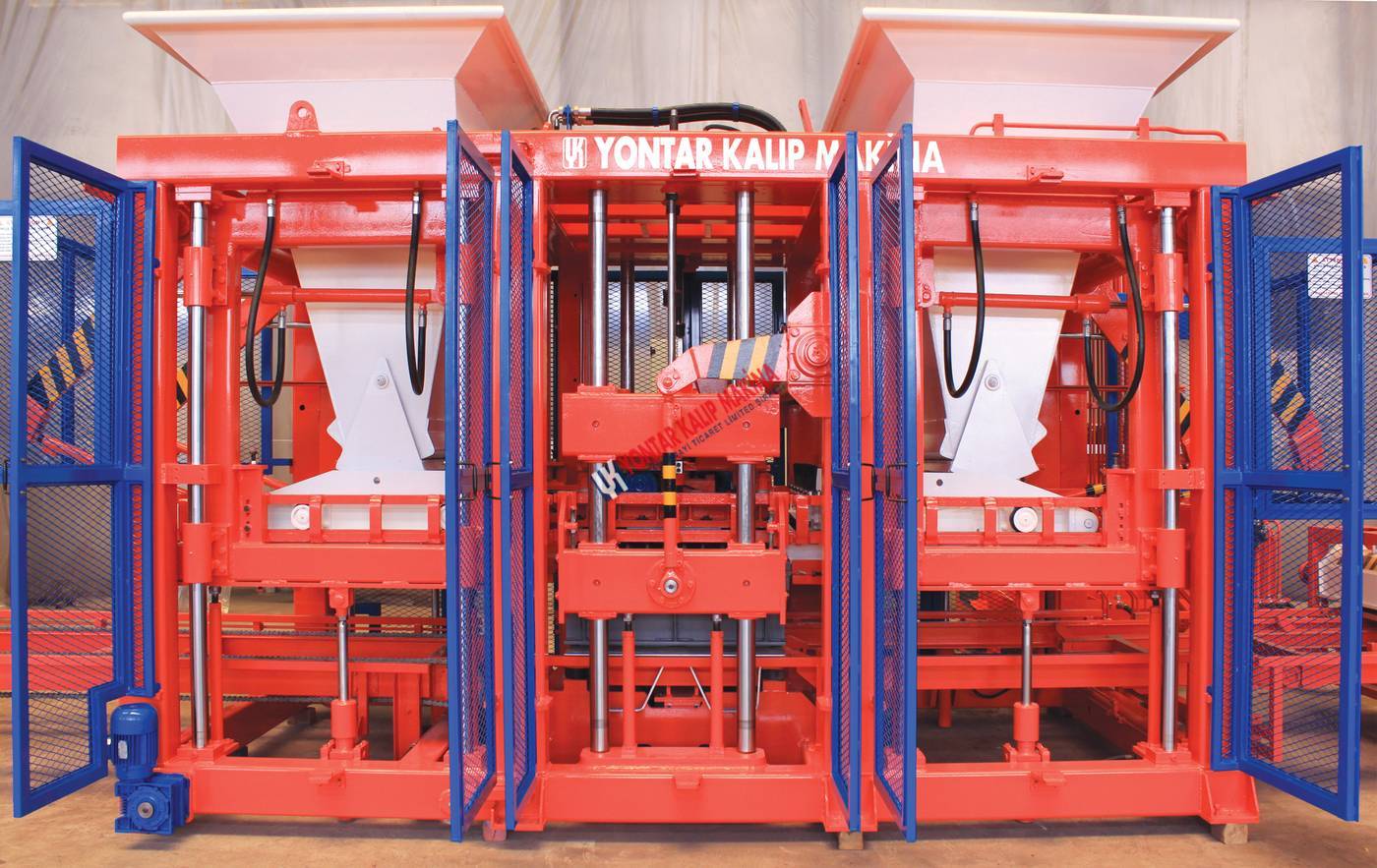

It is equipped with two sand depot bunkers, which are suitable for pneumatic sand feeding.
Thick mortar bunker is equipped with air blowing pneumatic scratchier.

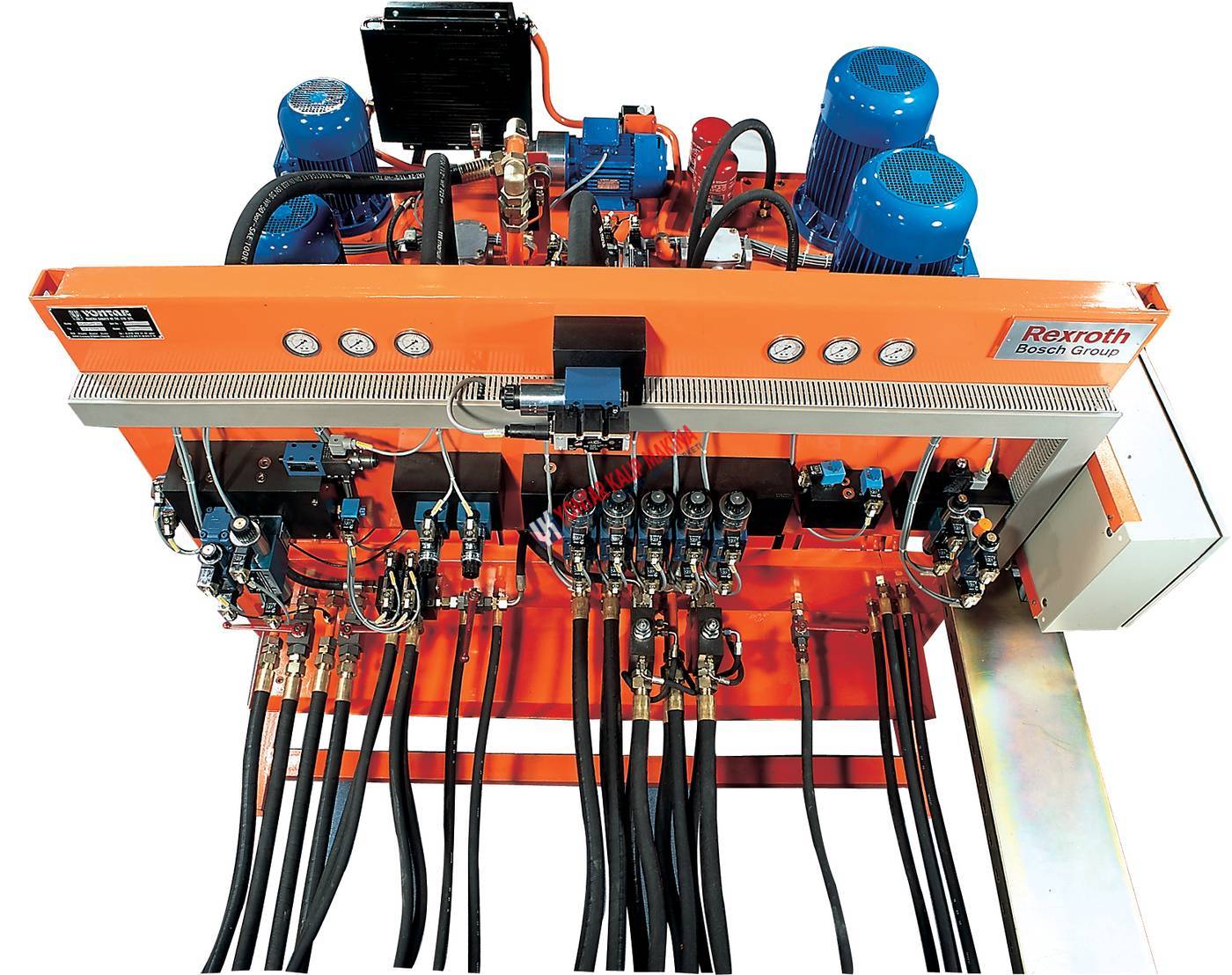

High quality is always sought in the equipment employed in the hydraulic system of the machine.
The hydraulic system is equipped with proportional valves.Thus speed of all the cylinders and of the required cylinder may be operated from control panel.
By means of built-in heater and cooler, fed by 5 pumps, unit temperature is regularly controlled.
|Type of Operation||Tam Otomatik|
|Max.Length||13700 mm||Max.Width||6500 mm|
|Max.Height||4150 mm||Max.Product Height||300 mm|
|Min.Product Height||50 mm||Pallet sizes||1300 x 1150 mm|
|Number of Hydraulic Pumps||5||Hydraulic tank kapacity||1000 ltr.|
|Hydraulic flow rate||137 ltr./min||Flow rate of circulation||150 ltr./min|
|Average hydraulic pressure||150 bar||Cycle time||38 ÷45 sec.|
|Volume of Morta Bunker||2x1800 ltr.||Number of bottom vibrators||2 pcs.|
|Number of top vibrators||4 pcs.||Total electric power||80,72 Kw|
