PRODUCT DETAILS

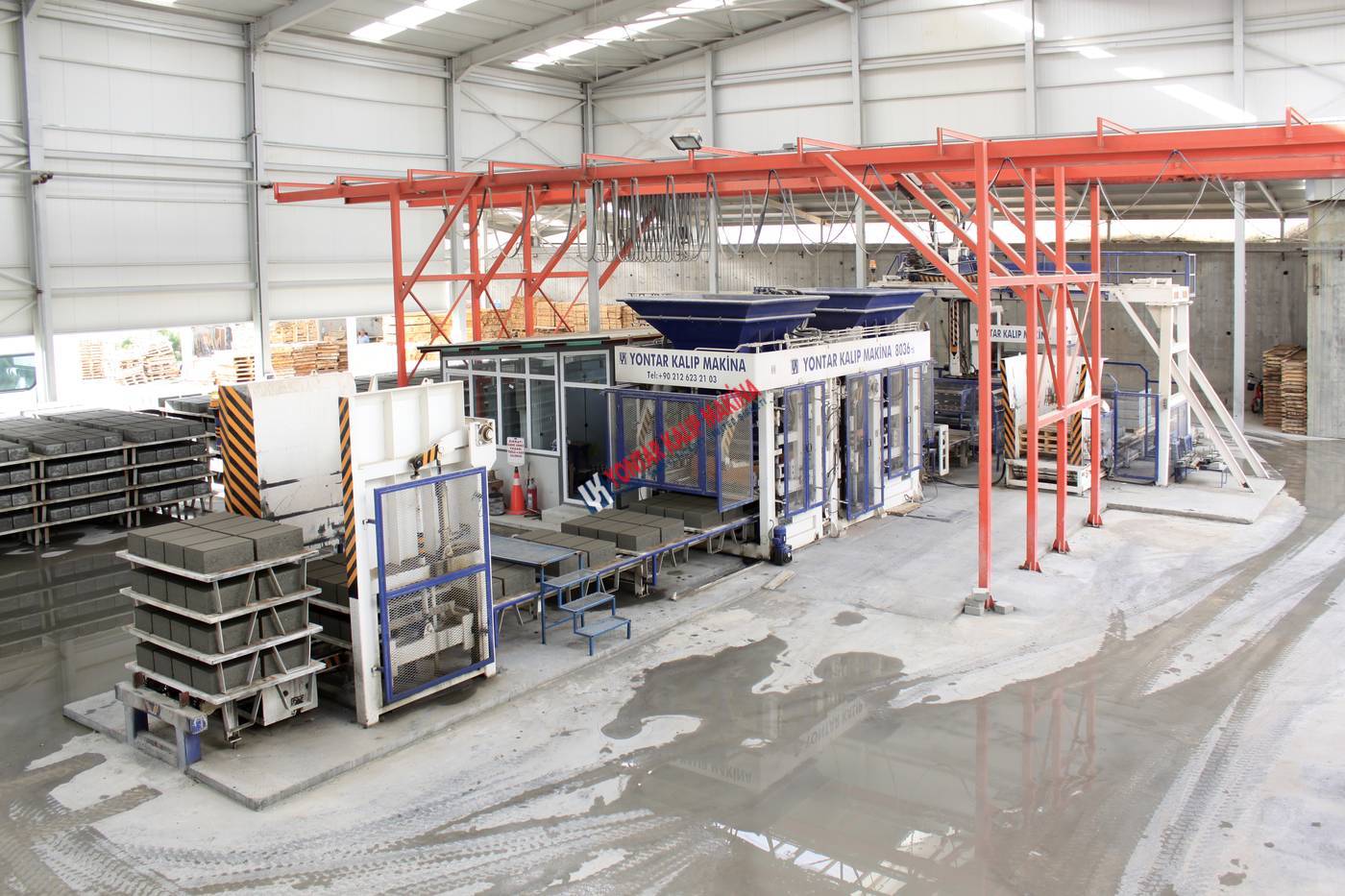

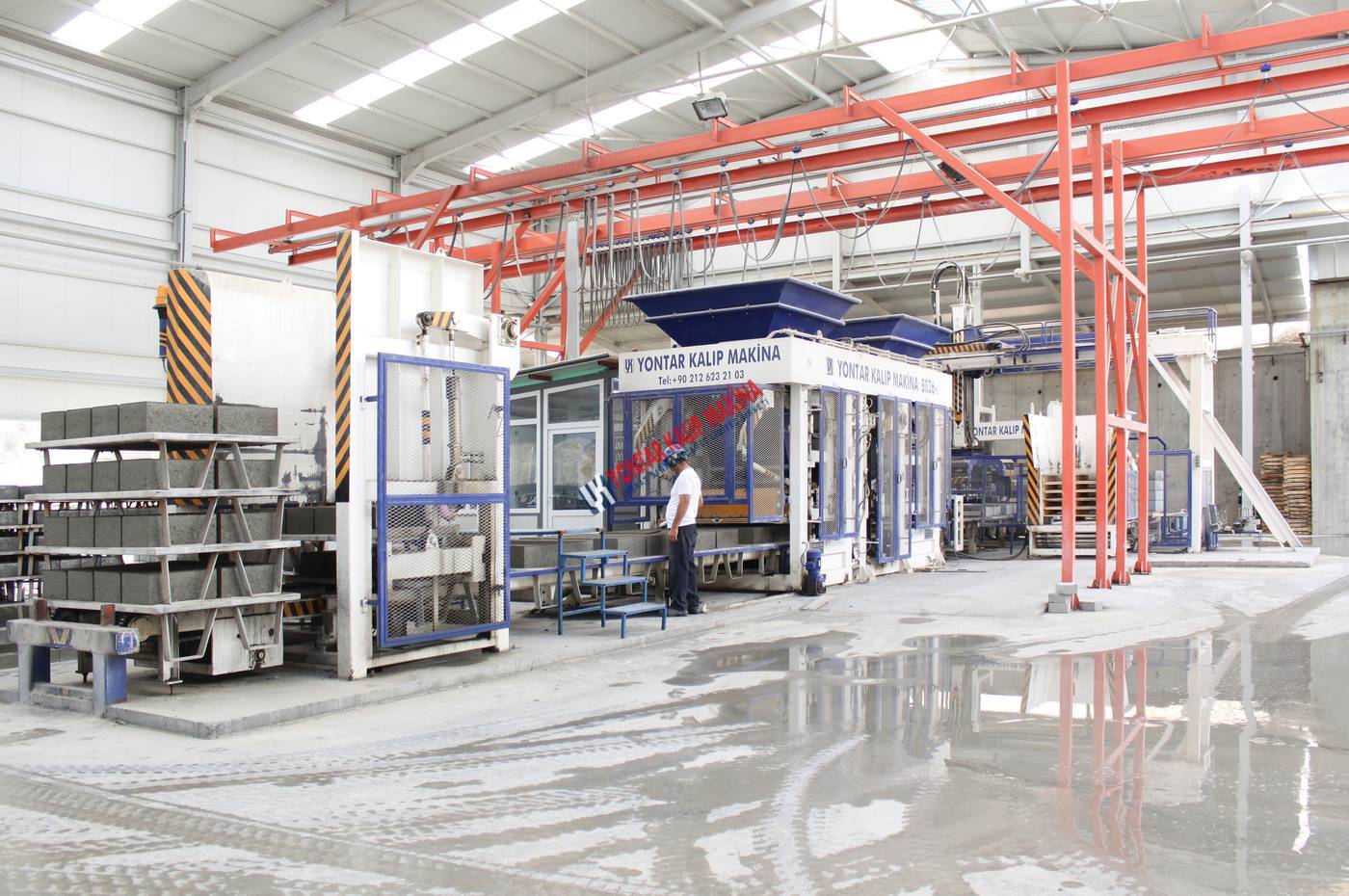

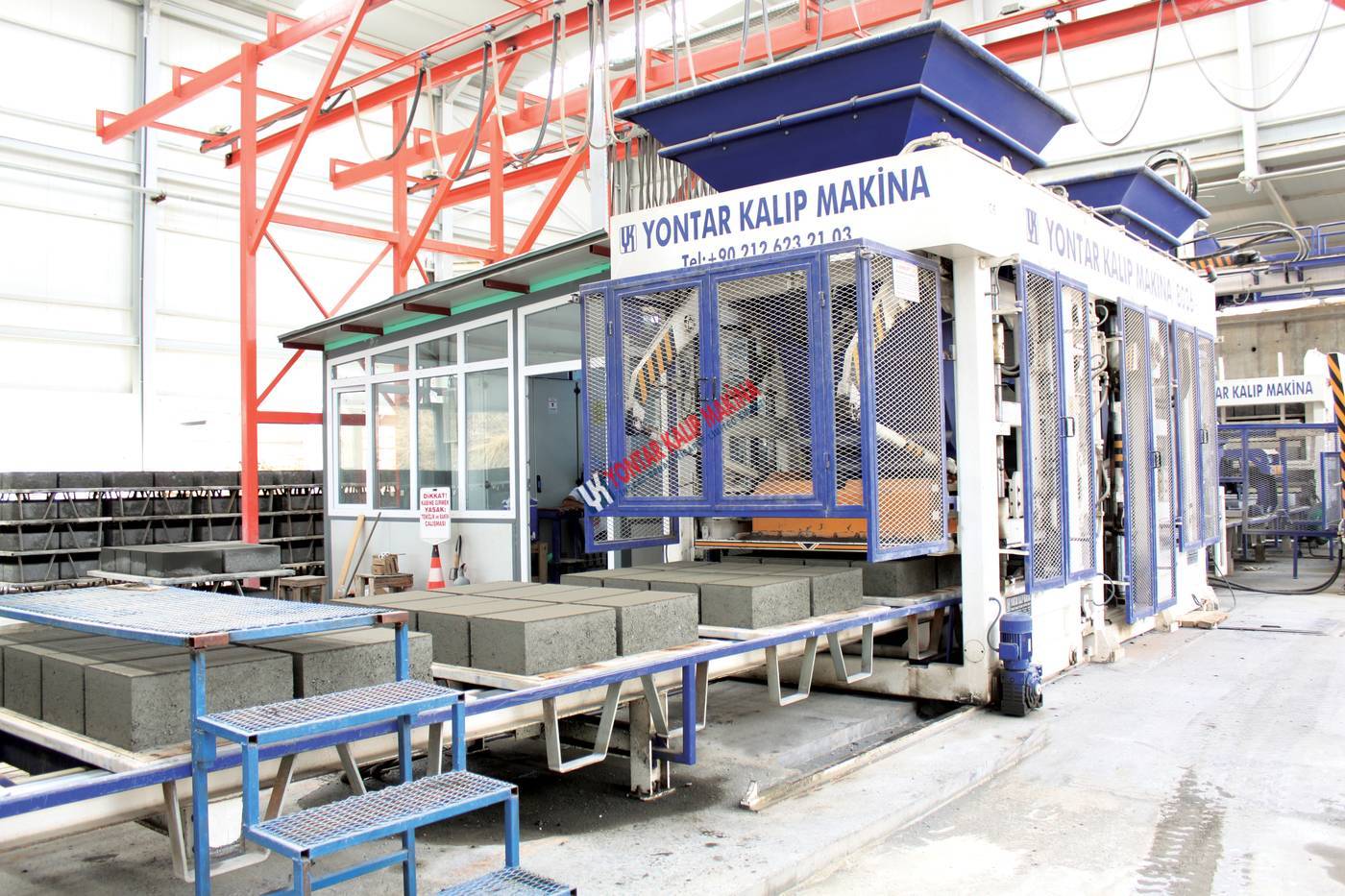

Stationary and single layer machine.
Product quality is heigh and cycle period is short.
The locking of the outern mould is being carried out by means of pneumatic cylinder.
For this reason an unchanging vibration on the mould is being ensured.
Vibrator motors are being driven via a frequence controlled speed driver. So that the vibration frequence and speed are adjusted via control panel according to the stone's shape.

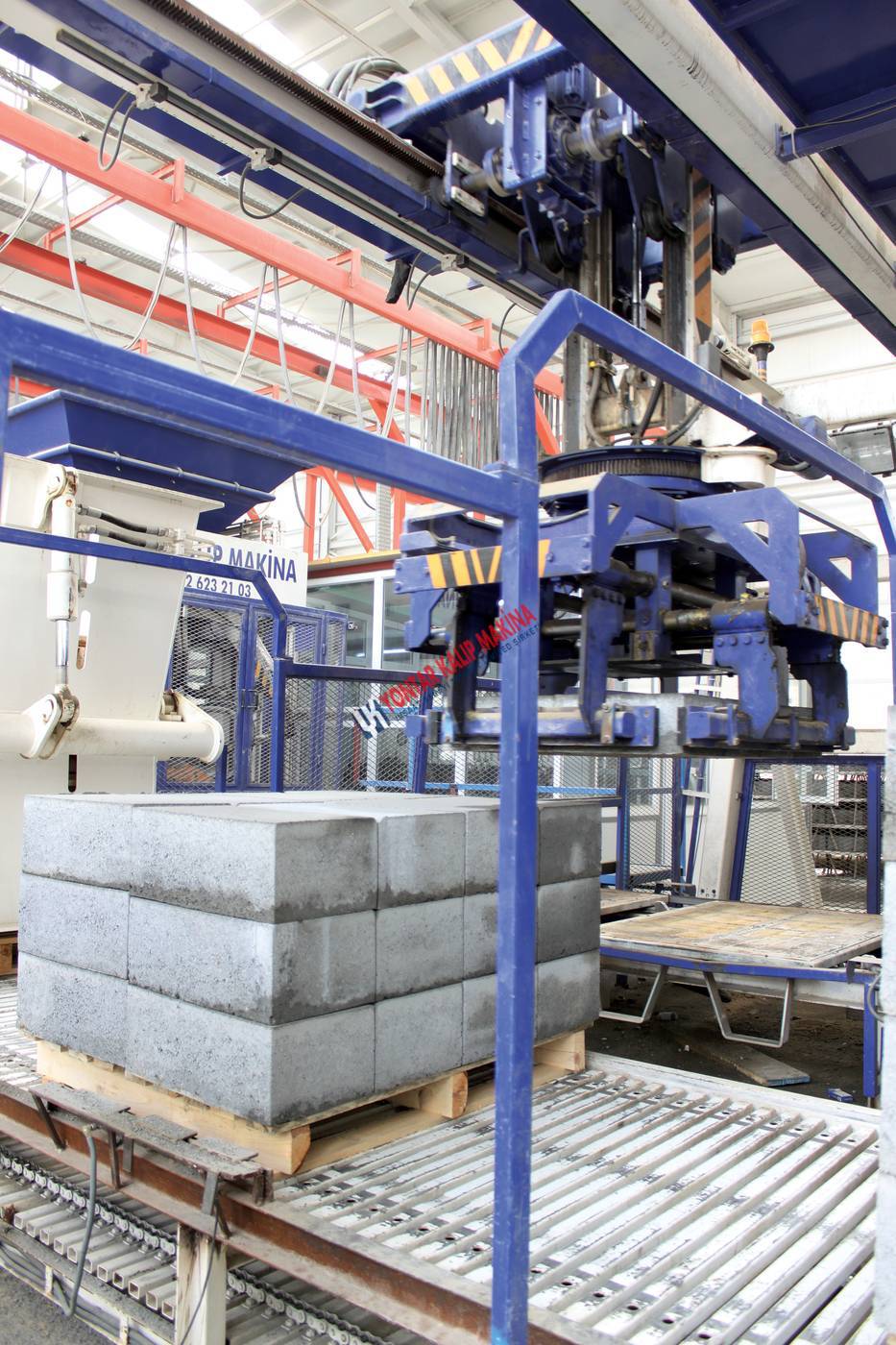

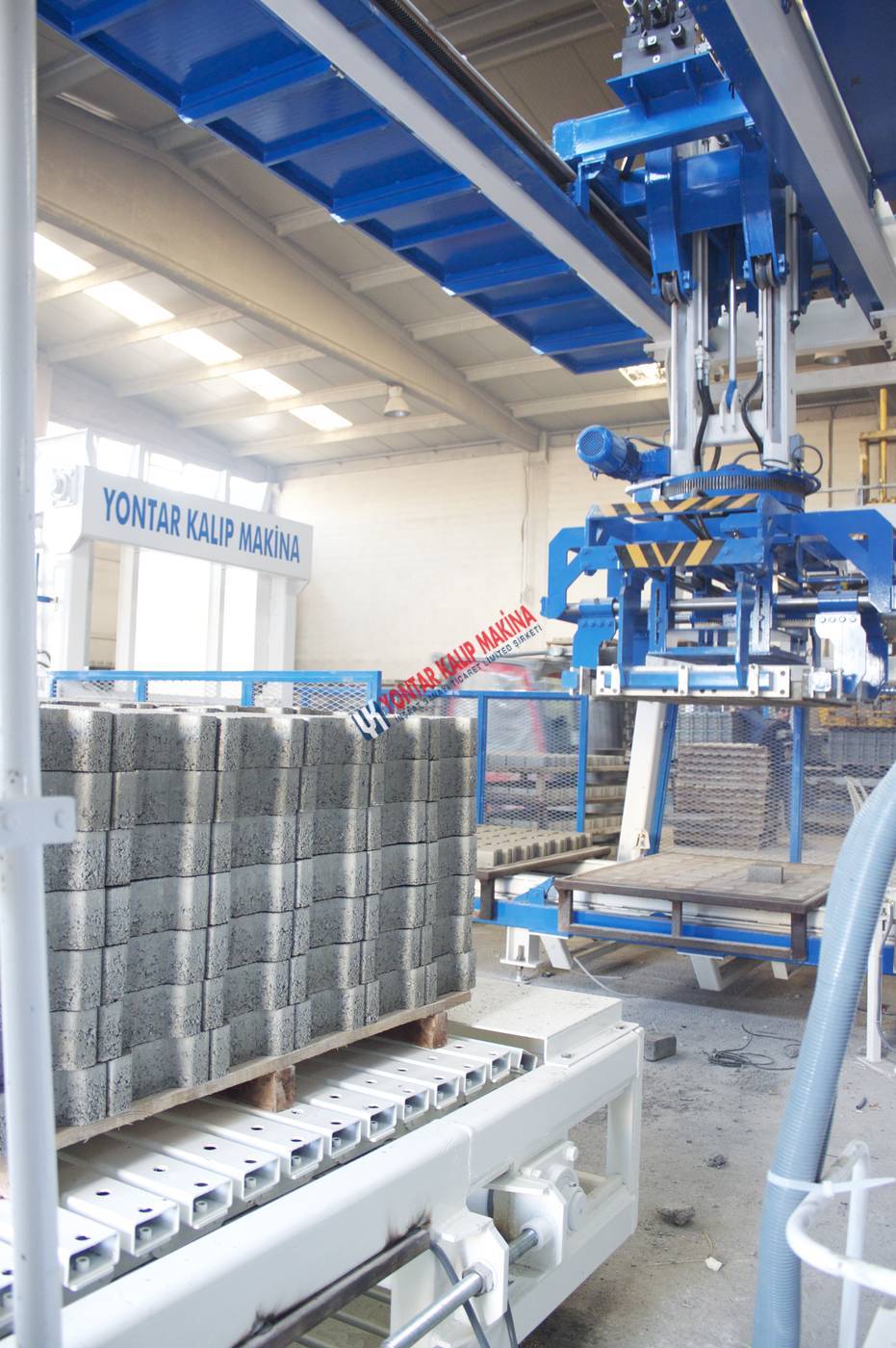

By means of transfer & collecting robot the products are stacked onto delivery pallet.

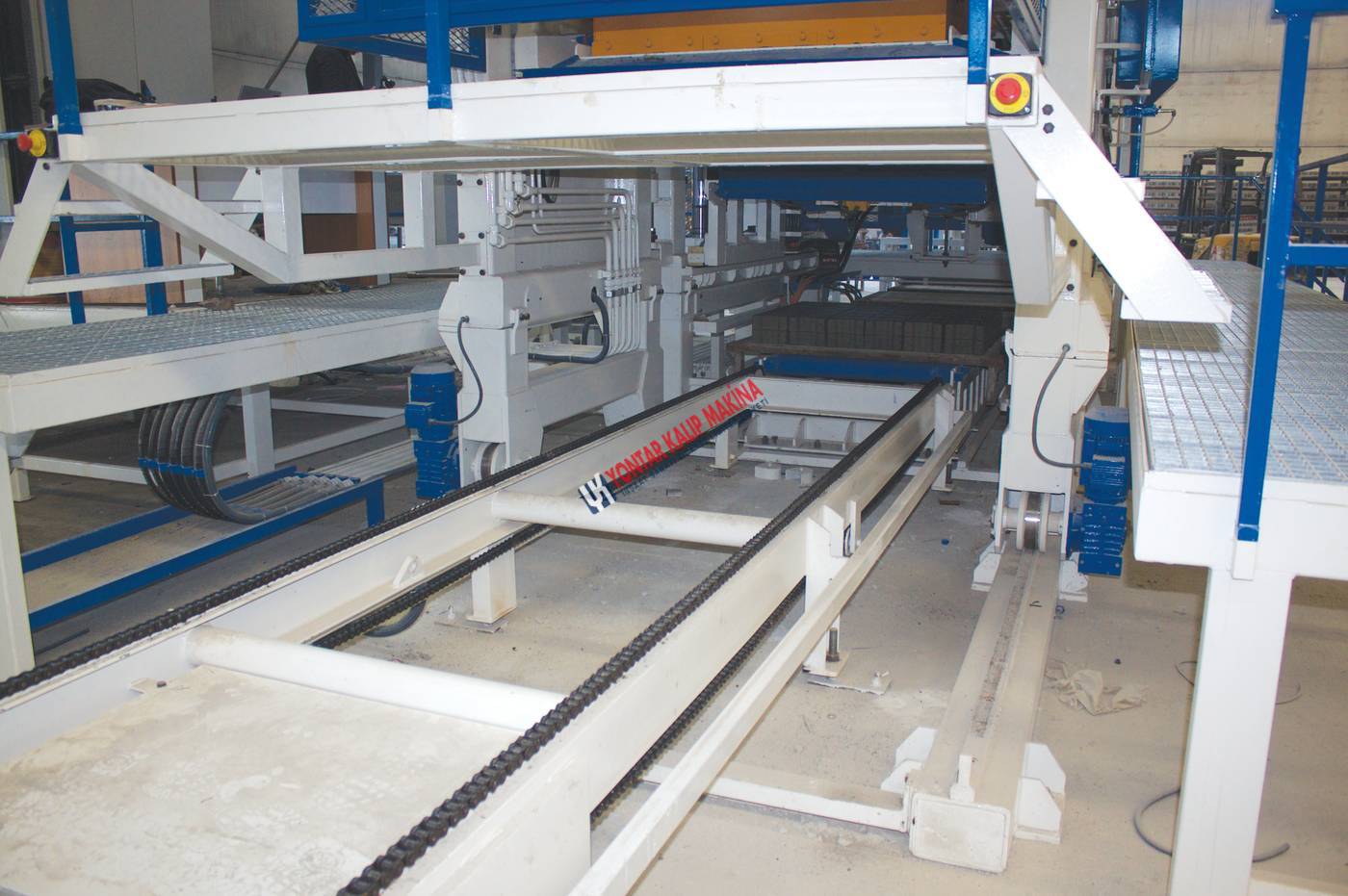

The types of KPM 8036 TS-2 ve KPM 8036 TS-4 are manufactured with finger-car system.

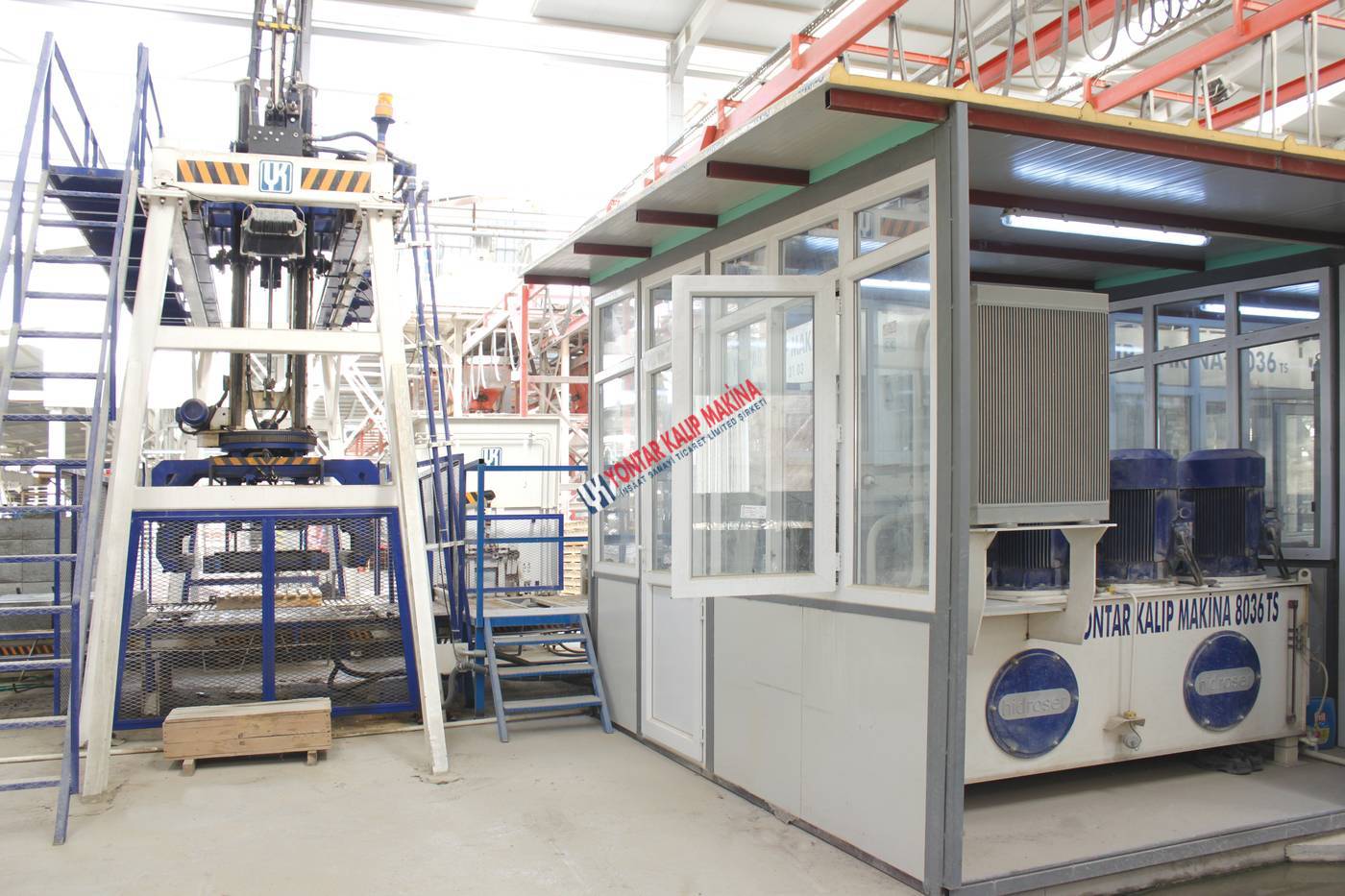

All of hydraulic components on the hydraulic unit are PARKER Germany branded.
Pro-portional valves were used for all important movements on the machine.


Type of Operation Tam Otomatik Max.Length 22750 mm
Max.Width 9000 mm Max.Height 5800 mm
Hydraulic tank kapacity 1300 ltr. Hydraulic flow rate 315 ltr./min.
Cycle time 18 ÷20 sec. Total electric power 109 Kw





Type of Machine Palette
size
(mm)
Numer of stones
in one mould
100 x 200 mm
Number of briquttes
in one mould
90 x 390 mm
Prod. height
min - max
(mm)
TS-1 1500 x 1150
(feeted)
54 12 50 / 300
TS-2 1400 x 1150 54 12 50 / 400
TS-3 1500 x 1300
(feeted)
66 18 50 / 300
TS-4 1400 x 1300 66 18 50 / 400
