YBM 1200 Stack Machine operates on hdraulic pressure and mechanical vibration principle.

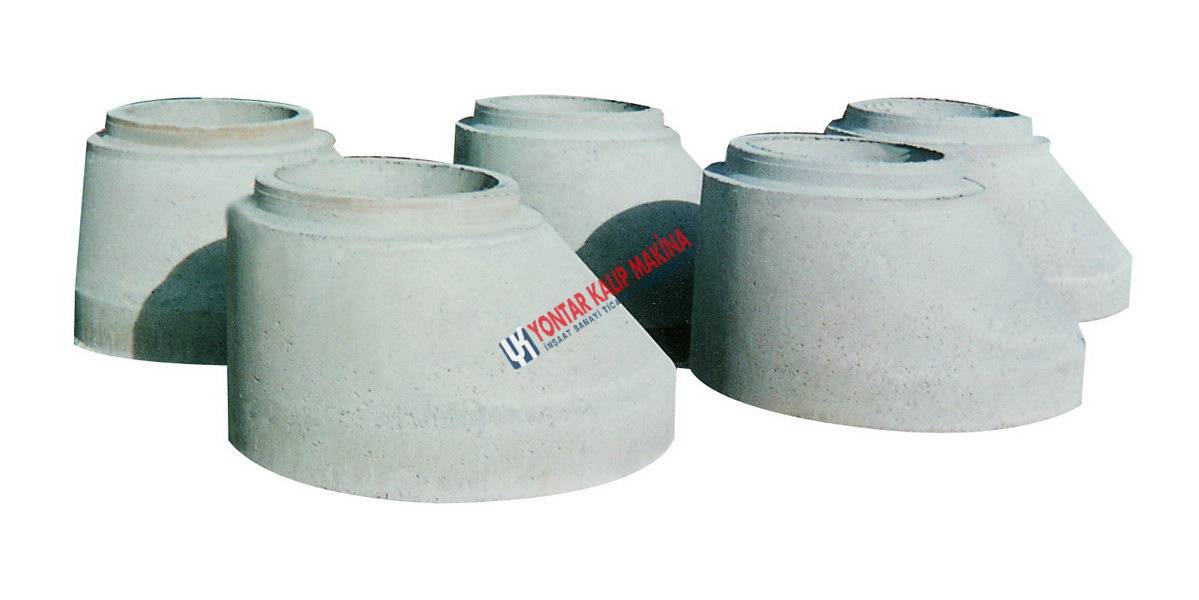

Circular stack components of Ø100 mm to 1200 mm diamenters.
Conical stack components of Ø620 - 100 / Ø620 - 1200 mm diamenters.
Parcel stack components of Ø 800 X 800 / Ø1000 - 1000 mm diamenters.
Conical-top adapter and caver of Ø620 diamenter can feasibly be manufactured in the stack machine.
Mortar is fed by means of a ratative bunker to tha machine and manufactured stacks are outputted from the machine by means of a crane.
Type Of Operation | Manual | Vibration Motor Power/Rpm | 7,5 Kw - 2800 Rpm | ||
Hdraulic Tank Capacity | 240 Liter | Motor Power for Concrete Bunker | 4 Kw | ||
Mortar Bunker Capacity | 1600 Liter | Total Motor Power | 20 Kw |
