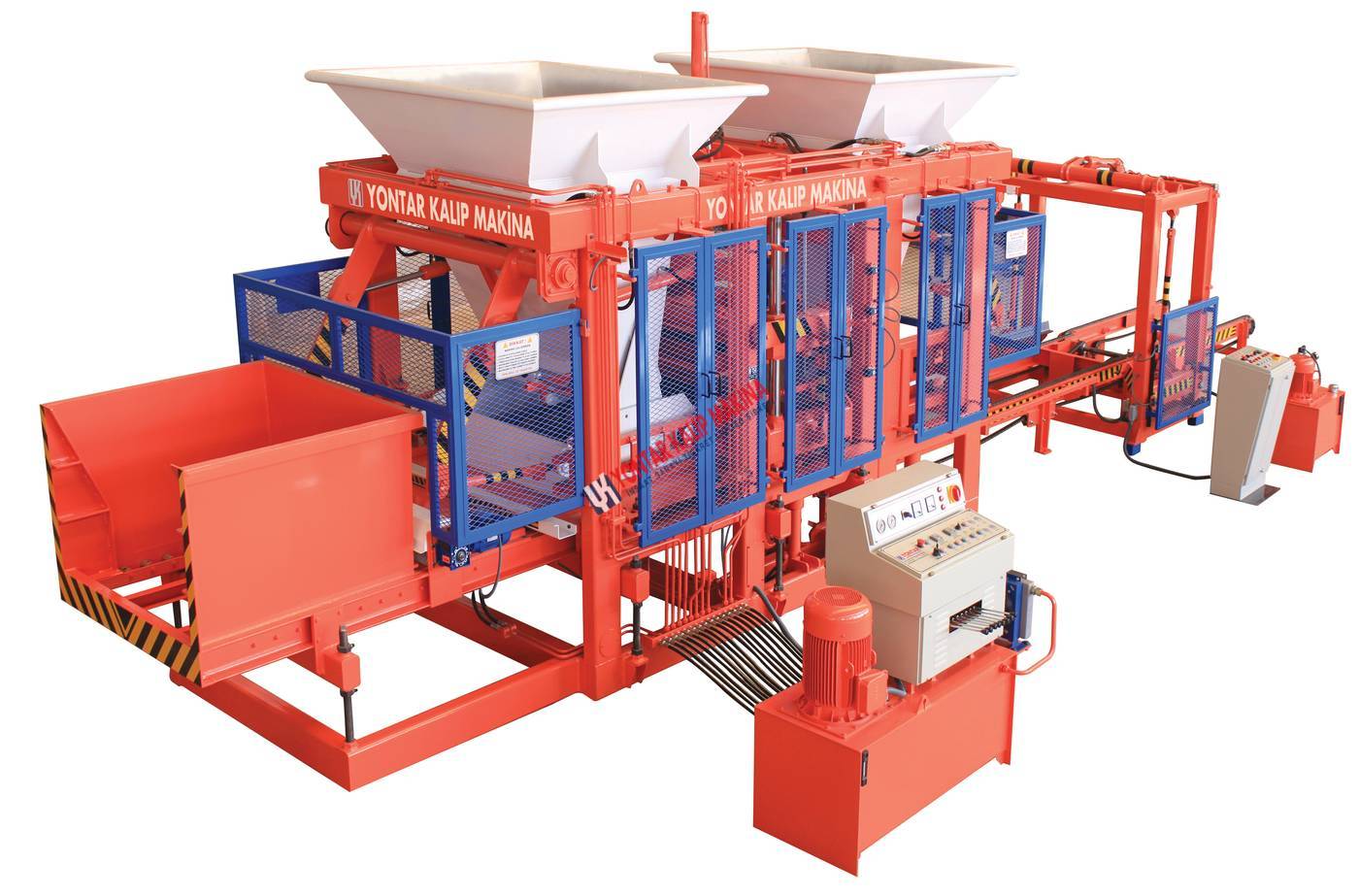

Stationary and single layer machine.
Product quality is heigh and cycle period is short.
The locking of the outern mould is being carried out by means of pneumatic cylinder.
For this reason an unchanging vibration on the mould is being ensured.
Vibrator motors are being driven via a frequence controlled speed driver. So that the vibration frequence and speed are adjusted via control panel according to the stone's shape.

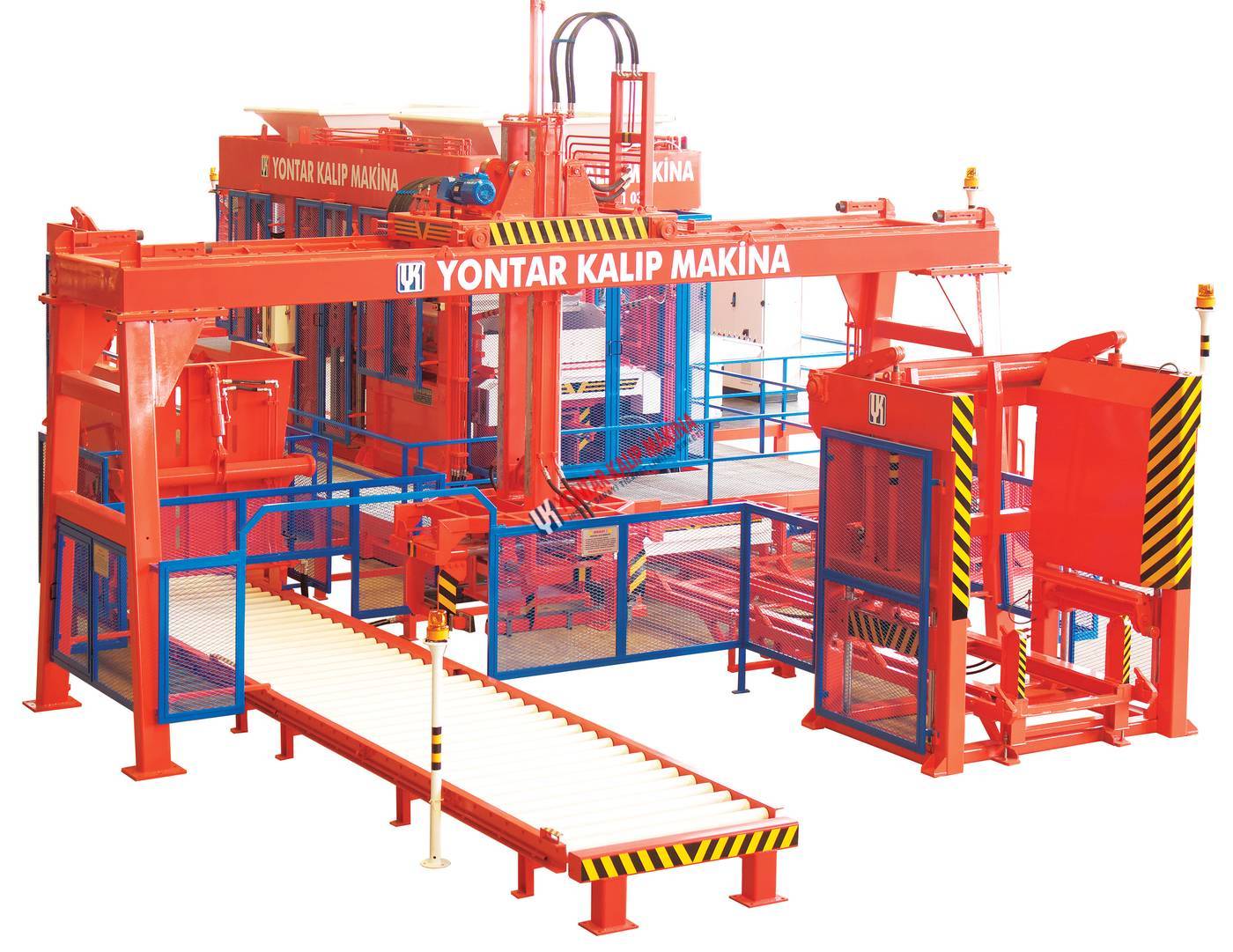

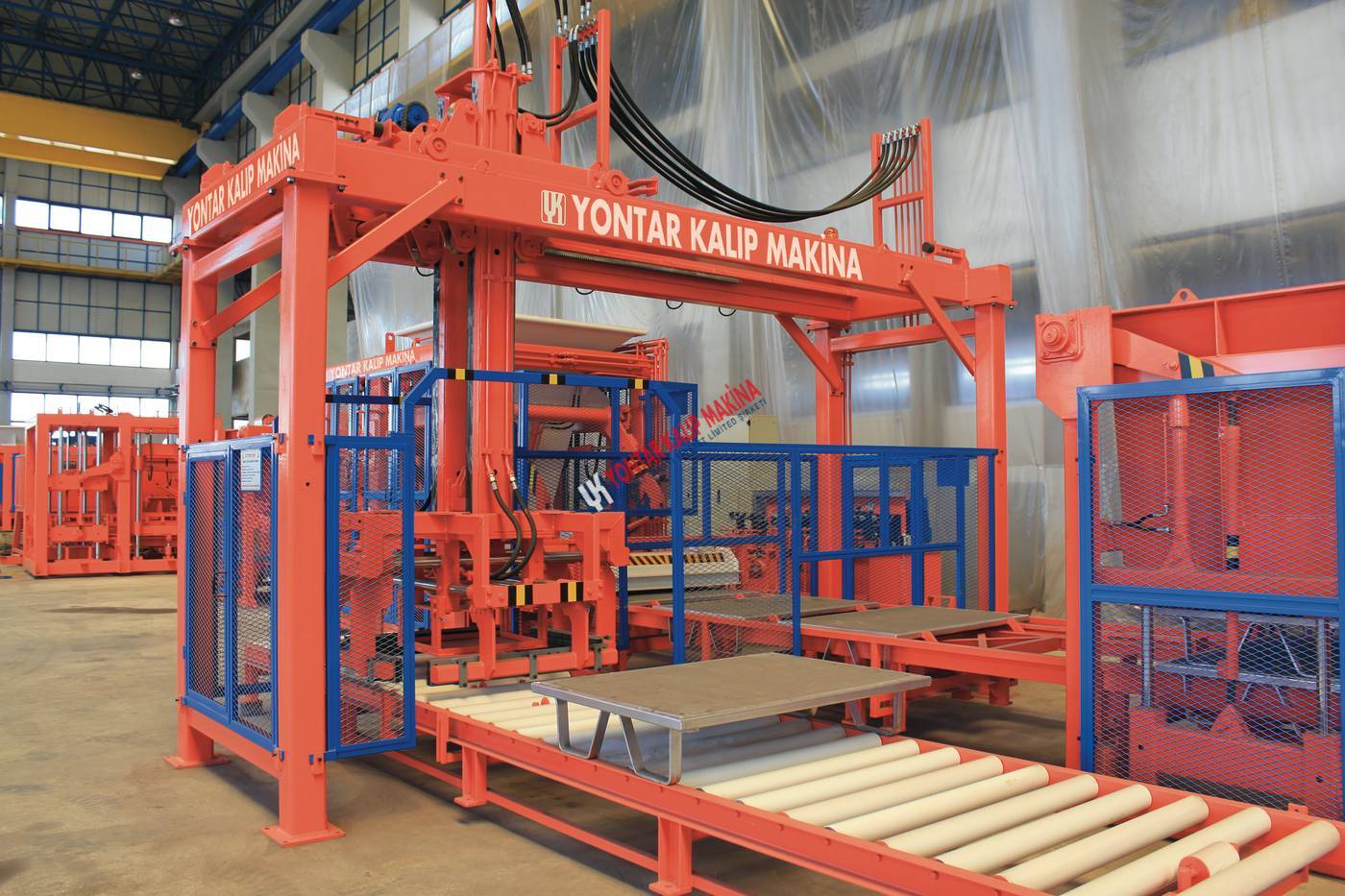

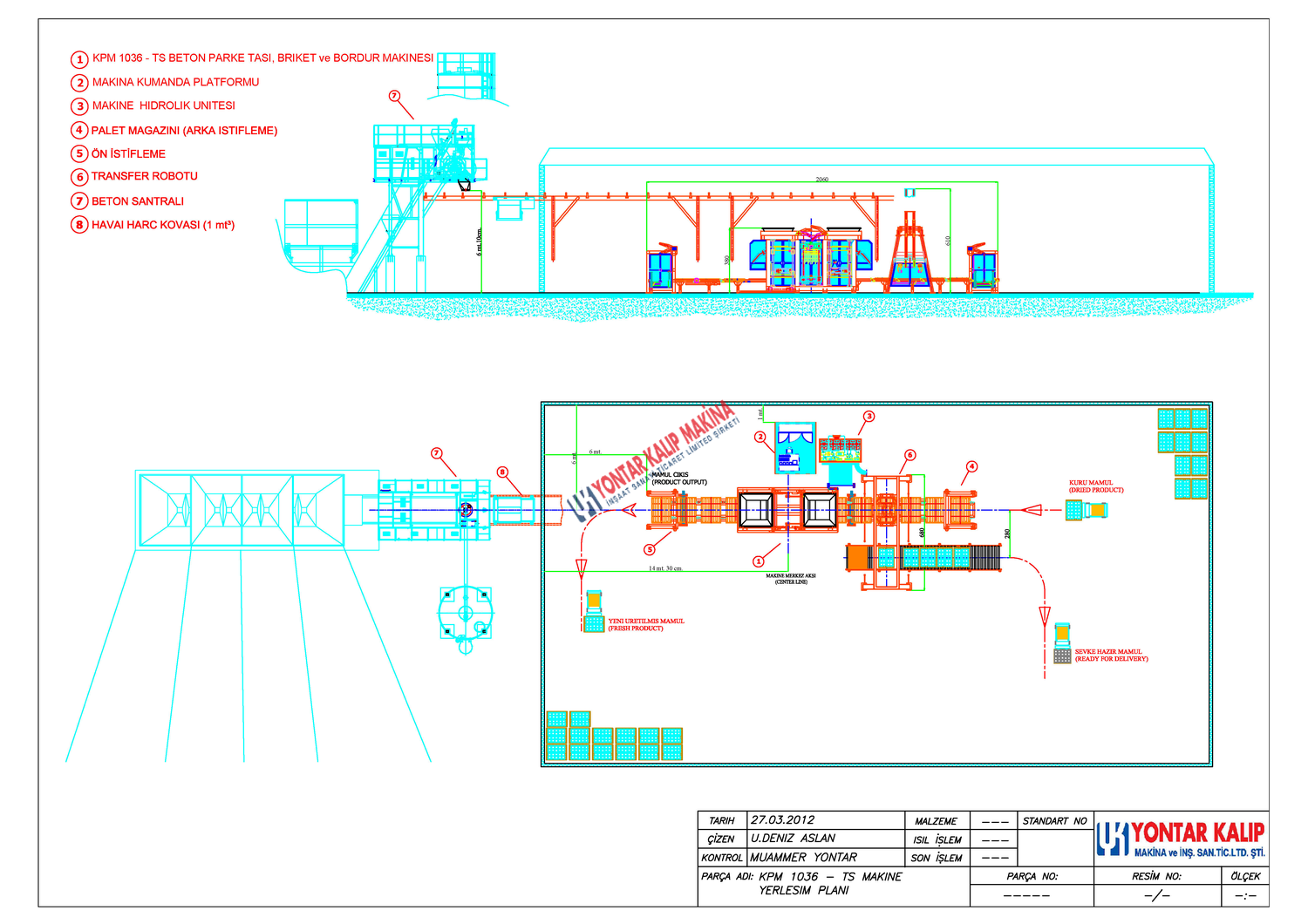

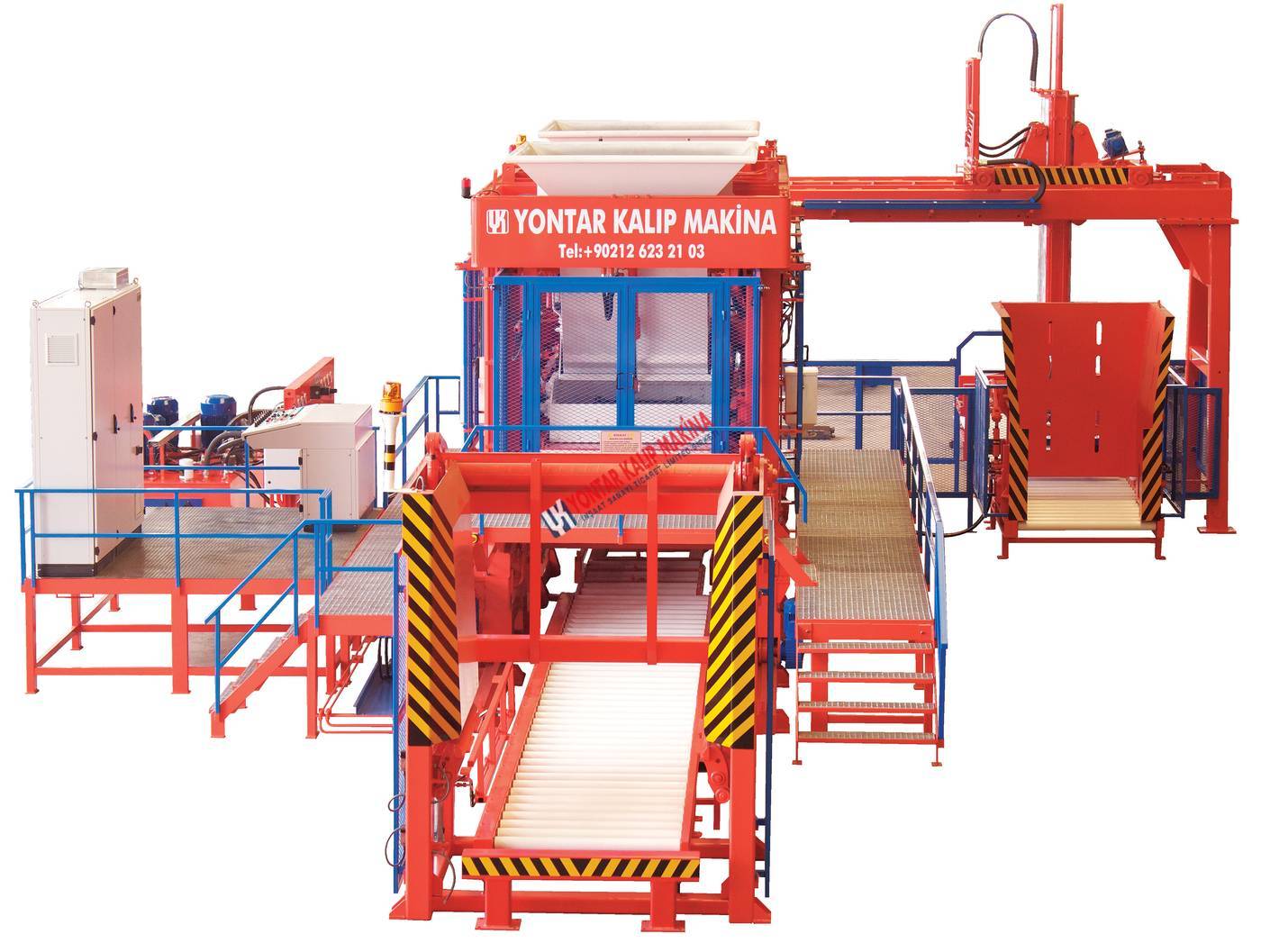

By means of transfer & collecting robot the products are stacked onto delivery pallet.

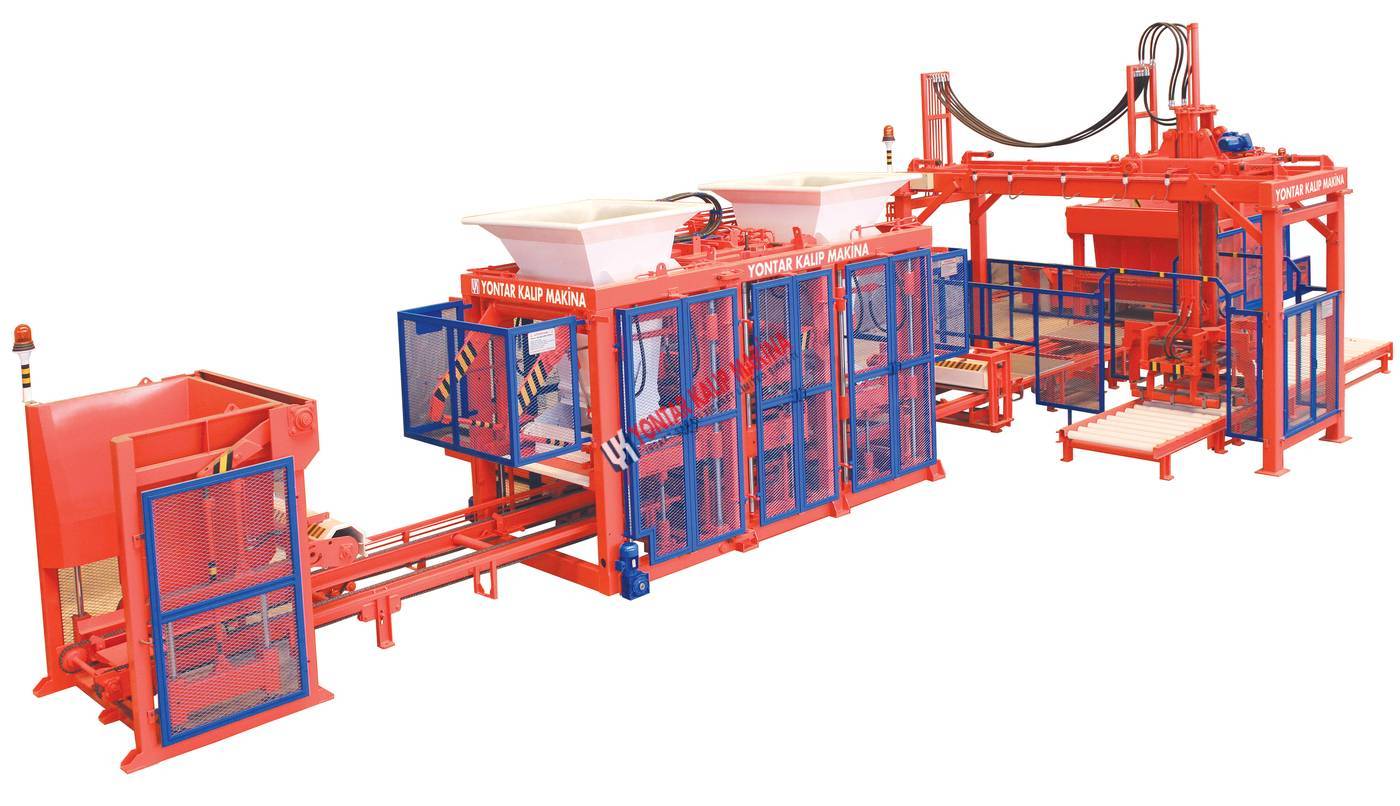

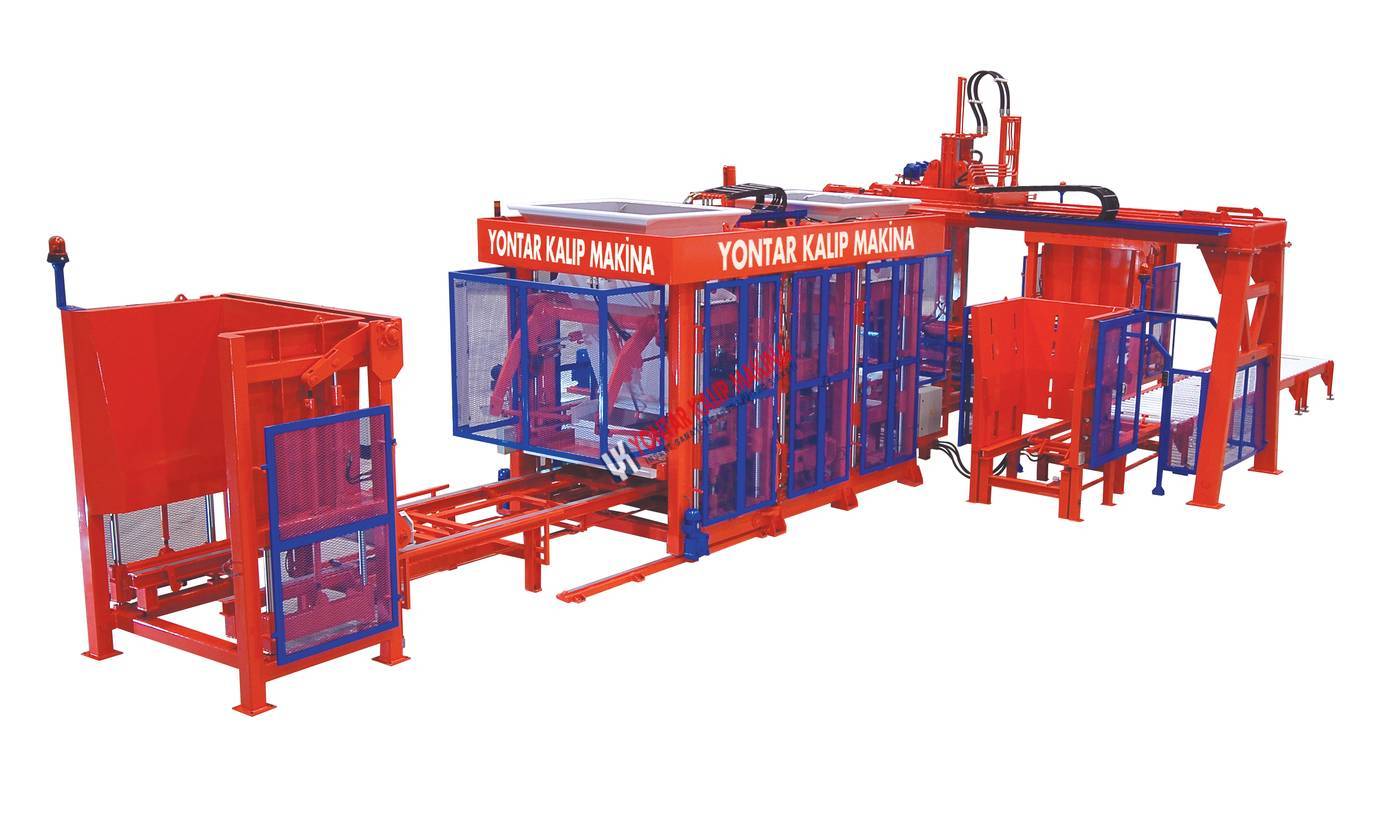

The types of KPM 1036 TS-2 ve KPM 1036 TS-4 are manufactured with finger-car system.

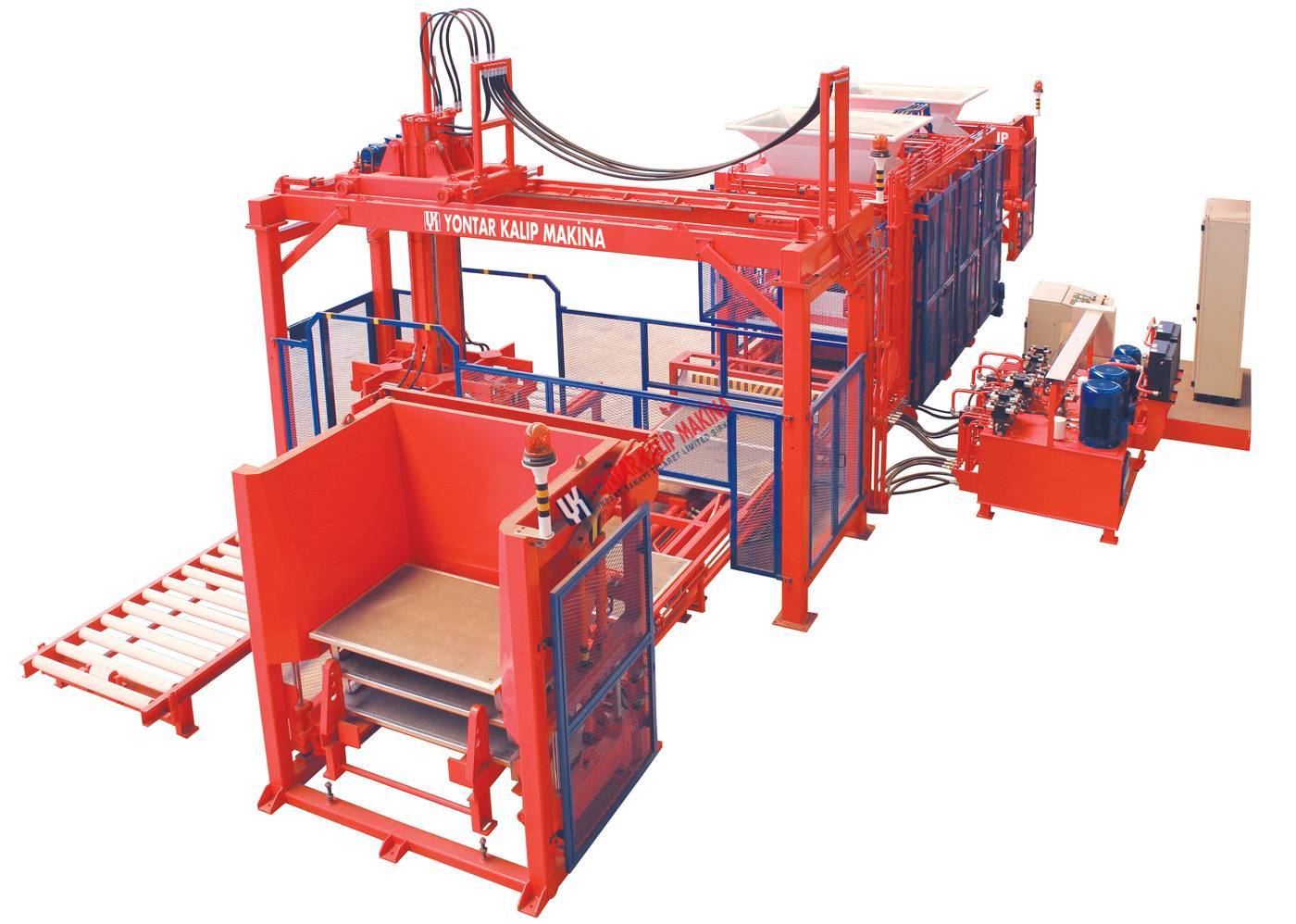

All of hydraulic components on the hydraulic unit are PARKER Germany branded.
Pro-portional valves were used for all important movements on the machine.
|Type of Operation||Tam Otomatik||Max.Length||22750 mm|
|Max.Width||9000 mm||Max.Height||5800 mm|
|Hydraulic tank kapacity||1300 ltr.||Hydraulic flow rate||315 ltr./min.|
|Cycle time||18 ÷20 sec.||Total electric power||109 Kw|
|Type of Machine||Palette |
|Numer of stones |
in one mould
100 x 200 mm
|Number of briquttes |
in one mould
90 x 390 mm
|Prod. height |
min - max
|TS-1||1500 x 1150 |
|54||12||50 / 300|
|TS-2||1400 x 1150||54||12||50 / 400|
|TS-3||1500 x 1300 |
|66||18||50 / 300|
|TS-4||1400 x 1300||66||18||50 / 400|
